Live Front vs Dead Front Padmount Transformer

The main difference between a live front and a dead front padmount transformer is how you can access the energized parts.

One design leaves the terminals exposed, while the other keeps everything fully covered and insulated. The transformer bushing controls this key difference.

This guide compares safety, maintenance, cost, and common uses so you can pick the right design for your power system.

The Core Component: Bushings

A transformer bushing is an insulated path that lets electricity move safely through the metal wall of a transformer. It acts as a sealed gateway, keeping the conductor separated from the grounded tank around it.

The way these bushings connect to the outside world is what makes a transformer either live front or dead front.

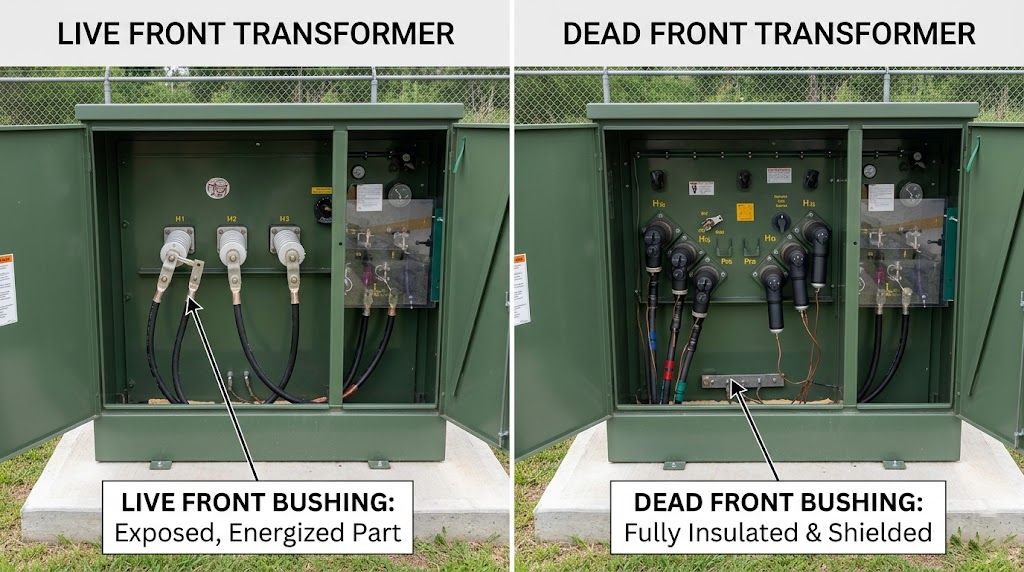

The Live Front Design

The live front transformer is the older style, and it has exposed high-voltage connection points on the outside. It has been used for decades, but you see it less often in public spaces today.

Components and Appearance

• Exposed porcelain bushings
• Bare metal terminals for cable connection
• Requires significant air clearance for insulation

Advantages and Disadvantages

The live front design costs less upfront, and its parts are simple and easy to inspect with your eyes.

The downsides are serious: it creates a high risk of arc flash and electric shock, it needs a larger cabinet to keep safe distances between parts, and it can only be used in locked-off areas away from the public.

Many utilities still use the live front standard for specific controlled sites, but safety concerns push most new projects in a different direction.

The Modern Dead Front

The dead front transformer is now the standard for safe power distribution. Every energized part is fully covered, so no one can accidentally touch a live connection.

Components and Appearance

• Insulated separable connectors, commonly called elbows
• Loadbreak or deadbreak transformer bushing inserts and wells
• All energized components are fully shielded and insulated

Advantages and Disadvantages

The biggest benefit of dead front design is much better safety, since the risk of arc flash drops sharply.

It also fits into a smaller cabinet, which makes it work well in neighborhoods and other public spots.

The tradeoffs are a higher upfront cost and the need for special tools and trained workers. You also cannot see the connection points directly, since they are hidden inside insulation.

The shift toward dead front design shows that the industry treats safety as a top priority. For any project where workers or the public might be nearby, it pays to work with makers who follow these modern standards.

To see how these safety features come together in well-built units, explore CNC complete range of modern pad-mounted transformers.

Head-to-Head Comparison

A side-by-side look at these two designs helps engineers and planners weigh the key factors for their projects.

Arc flash is a sudden, dangerous burst of energy that can seriously injure workers.

Exposed terminals on a live front unit raise this risk, while the fully shielded dead front design keeps that danger much lower. Maintenance works differently for each type.

A dead front transformer with loadbreak elbows lets workers do some tasks while the unit is still energized, which cuts downtime.

Most work on a live front unit, by contrast, requires a full shutdown and strict safety steps before anyone gets close.

This ability to work on an energized system is one big reason dead front design has become so popular.

A Practical Decision Framework

Use this checklist to guide your choice and make sure you pick the right transformer for your situation.

1. Evaluate the Location: Will the transformer sit in a public area like a shopping center, or inside a secure, fenced compound? Public access strongly favors a dead front design.
2. Review Safety and Maintenance Protocols: Are your workers trained to use special tools for live-line work? Does your safety policy aim to keep workers away from energized parts as much as possible?
3. Analyze Total Cost of Ownership: Does the lower upfront price of a live front unit really make up for long-term risks, possible higher insurance costs, and the expense of shutting down power for every maintenance visit?
4. Consider Future Needs: Will the better safety, flexibility, and smaller size of a dead front design serve your facility or grid upgrade plans better over time?
