Industrial Transformer Voltages Guide: Low vs. Medium Voltage Distribution Classes

Every modern industrial facility runs on its electrical system. The machinery matters, but without the right power setup behind it, nothing works. Choosing the correct industrial transformer voltages is a foundational decision. It shapes safety, efficiency, and what you spend to keep the lights on.

In industrial settings, electrical power is distributed at two main levels. The first is Low Voltage (LV), which runs below 1,000 Volts (1kV). The second is Medium Voltage (MV), which runs from 1kV up to 35kV.

This guide walks you through the key differences between LV and MV systems. It will also help you pick the right setup for your facility.

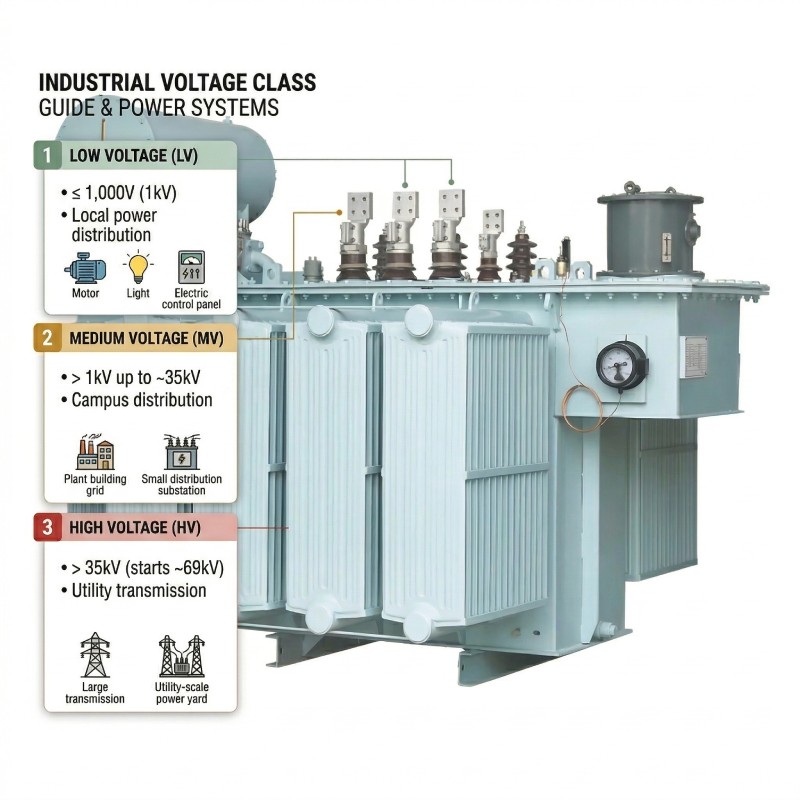

Voltage Classes Comparison

Before comparing, let’s define the standard voltage classifications. These are based on guidelines from organizations like the IEEE and NESC standards.

Low Voltage (LV): Systems running at or below 1,000 Volts (1kV). In North America, this includes 480V, 600V, and 208V. These voltages power machinery, lighting, and control panels directly.
Medium Voltage (MV): Systems running above 1kV up to around 35kV. Common levels include 4.16kV, 12.47kV, and 34.5kV. MV moves power efficiently across a large plant or campus.
High Voltage (HV): Systems running above MV, often starting at 69kV. A high voltage transformer in this range handles utility-scale power transmission. It is not typically used for distribution within a single industrial site.

Low Voltage vs. Medium Voltage Comparison

The choice between a low voltage and medium voltage system depends on your facility size, load needs, and distance. Let’s break down the key differences.

Feature	Low Voltage (LV) System	Medium Voltage (MV) System
Voltage Range	Typically < 1,000V (e.g., 480/277V, 600V)	1kV – 35kV (e.g., 4.16kV, 13.8kV)
Primary Application	Direct power to machinery, lighting, HVAC, and control panels.	Primary power distribution across a large site or campus.
Conductor Size	Requires larger, more expensive copper cables for the same power due to higher current.	Uses smaller, more economical cables for efficient long-distance power transfer.
Equipment Footprint	Switchgear and transformers are generally more compact.	Requires larger switchgear, more physical clearance, and often dedicated electrical rooms.
Safety Requirements	Standard electrical safety protocols; equipment is often accessible to qualified personnel.	Strict safety protocols, arc flash hazards are significantly higher, requires specialized training and PPE.
Typical Use Case	Small manufacturing plants, commercial buildings, workshops.	Large factories, industrial parks, university campuses, data centers, mining operations.

Power loss is a critical factor here. Because power loss (I²R loss) grows with the square of the current, LV systems waste more energy as heat over long distances. MV systems move the same power at a much lower current, which cuts those losses significantly.

Understanding these differences is the first step. The next step is picking the right hardware. Whether your project needs a step-down unit for a low voltage distribution system or a primary MV transformer, explore our comprehensive catalog of industrial transformers to see models suited for every application.
