Transformer Symbol Guide: Read Any Schematic with Confidence

Reading an electrical drawing is a key skill. The ability to quickly identify a transformer symbol is fundamental to that skill, since transformers step voltage up or down, provide isolation, and serve as a cornerstone of power systems and electronics.

The most common transformer symbol consists of two coils separated by a core. It looks like this: (~~~ || ~~~).

This guide will break down every common transformer circuit symbol you’ll encounter in schematics. We will equip you to read any schematic with confidence, understanding not just the symbol, but its function within the circuit.

First Principles: Why Symbols?

To master the symbols, we first must understand why they exist. They are more than just pictures; they are a shared language that engineers and technicians use every day.

The Schematic Language

Electrical schematics are the universal language for engineers, technicians, and electricians. They provide clarity and help prevent costly errors.

Like letters forming words, these standard symbols form circuits. Anyone trained in the language can pick up a schematic and read it right away.

The Transformer’s Role

A transformer works on the principle of mutual inductance, where a changing magnetic field in one coil induces a voltage in another. The symbol must show this core function quickly, without needing paragraphs of text.

It tells you how energy moves and changes in the circuit.

Symbol of Transformer Components

Every part of a transformer symbol has a specific meaning. By breaking down the symbol, we can learn to read its visual grammar.

The Windings

The coiled lines (~~~) represent the windings. The primary winding is the input side, and the secondary winding is the output side.

The number of loops drawn is purely symbolic, not a literal count. However, the ratio of windings determines whether the transformer is step-up or step-down.

The Core

The lines drawn between the windings represent the transformer’s core, which carries the magnetic field. The type of line tells you about the core material and its use.

Core Symbol Core Material Common Application

Core Symbol	Core Material	Common Application
`\|\|`	Iron Core	Low-frequency, high-power (e.g., power distribution)
`- -`	Ferrite Core	High-frequency (e.g., switch-mode power supplies)
(No Lines)	Air Core	Very high-frequency, RF circuits (e.g., radio tuners)

||

Iron Core

Low-frequency, high-power (e.g., power distribution)

- -

Ferrite Core

High-frequency (e.g., switch-mode power supplies)

(No Lines)

Air Core

Very high-frequency, RF circuits (e.g., radio tuners)

Polarity Marks

Small dots placed at the end of each winding are polarity marks. This is known as the dot convention, and it matters a lot for circuits where phase relationships are important.

The rule is simple: when current enters the primary winding’s dot, the induced current exits the secondary winding’s dot. This means the dotted ends are in phase with each other.

Symbols of Different Transformer Types

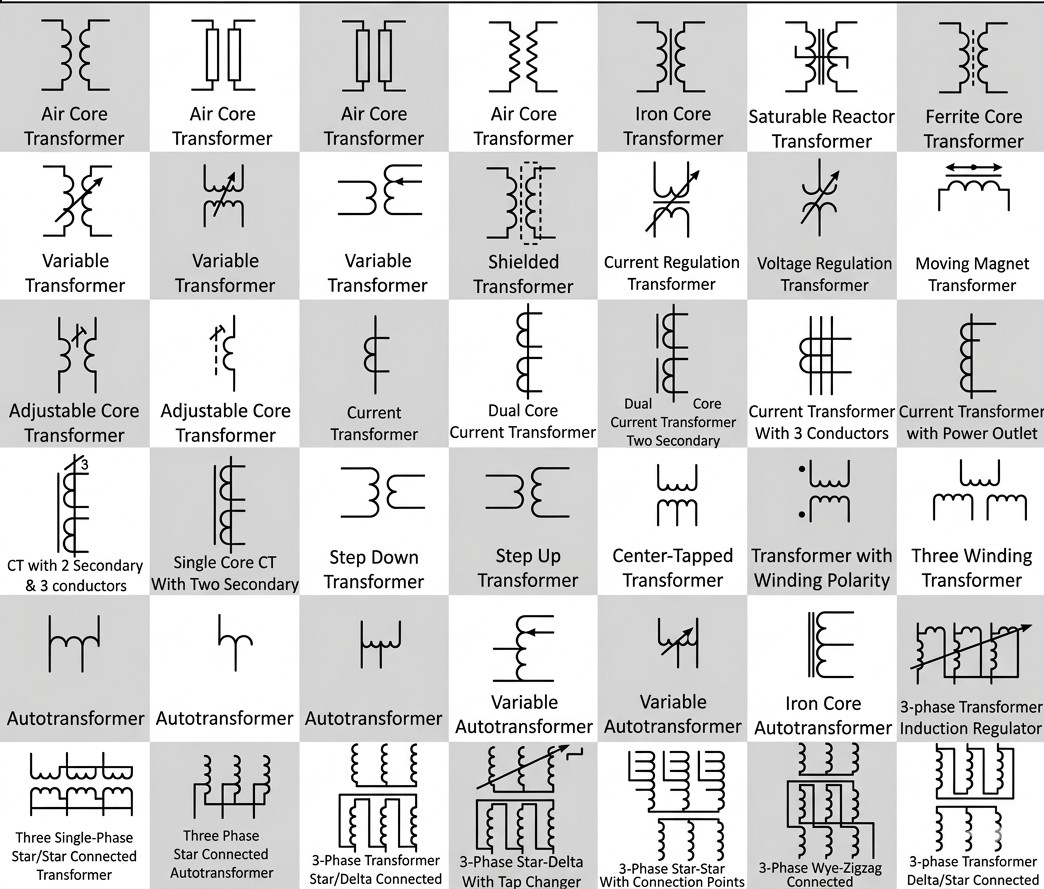

Here is a quick-reference guide to the most common transformer symbols you will encounter in schematics.

Symbol (Glyph)	Name & Keywords	Common Application
`(~~~ \|\| ~~~)`	Single-Phase Transformer	General-purpose, residential power, consumer electronics.
`(Y - Δ)`	Three-Phase Transformer	Industrial motors, power distribution grids.
`(~~ tap ~)`	Autotransformer	Voltage regulation, starting large motors.
`(~~~ \|\| tap ~~~)`	Center-Tapped Transformer	Dual-voltage power supplies (e.g., +12V / -12V).
`(conductor through O)`	Current Transformer (CT)	Safely measuring high AC currents for metering and protection.
`(~~~ \|\| ~~~)`	Potential Transformer (PT/VT)	Safely measuring high AC voltages for metering.

Single-Phase Transformer

This is the most basic electrical transformer symbol. It shows up everywhere, from phone chargers to residential power step-down applications.

Three-Phase Transformer

Three-phase power is the backbone of the world’s electrical grids, and its symbols show the winding setups, such as Delta (Δ) and Wye (Y or Star). Reading these symbols is a must for anyone working with industrial machines.

Autotransformer

This transformer uses a single tapped winding for both its primary and secondary sides. It is not meant for isolation, but it works very well for small voltage adjustments.

Step-Up / Step-Down Transformer

This function is often implied by the circuit’s context rather than shown by a unique symbol. A schematic for a low-voltage device connected to mains power implicitly uses a step-down transformer.

Center-Tapped Transformer

A tap on the secondary winding adds an extra connection point, which splits the output voltage in two. This is essential for creating bipolar DC power supplies from a single AC source.

Instrument Transformers

Current Transformers (CT) and Potential Transformers (PT) are used to safely measure high currents and voltages, stepping these values down to a safe level for meters and relays.

Reading in Context

Knowing the symbols is one thing, but reading them inside a live circuit is another. Here, we will show you how these symbols work in a real-world design.

A Power Supply Example

Imagine a simple AC-to-DC power supply schematic. It shows an AC source, a transformer circuit symbol, a bridge rectifier, a smoothing capacitor, and a load resistor.

Step-by-Step Guide

Identify the Transformer: We first locate the symbol on the input side. It shows two coils with solid lines, pointing to a single-phase, iron-core transformer.
Determine its Function: The primary connects to the mains AC source, and the secondary feeds a low-voltage rectifier circuit. From this context, we know its job is to step down the voltage.
Check for Other Details: If we saw a tap on the secondary winding, we would know it is a center-tapped transformer, though that tap might not be used in every setup.
Connect to the Physical World: This schematic tells a technician they need a physical transformer with a specific step-down ratio (e.g., 120V to 12V) and a power rating that fits the load. It is worth remembering that schematics often use ideal transformer concepts, while real parts have losses and limits.

Symbol Variations

While symbols are largely standard, you may run into slight differences depending on the region or the age of the diagram. These small changes are easy to handle once you know what to look for.

IEC vs. ANSI

Minor regional differences exist, mainly between IEC (International Electrotechnical Commission) and ANSI (American National Standards Institute) standards. For transformers, the symbols look very similar, but it is good to know about standards like IEC 60617.

The IEC transformer symbol works the same as the ANSI coil-based symbol. It may just appear with cleaner lines in some CAD software.

Variable Transformer

A variable transformer, or Variac, is shown with an arrow passing through the windings, which means the output voltage can be adjusted. These are common on lab benches and in test equipment where precise voltage control is needed.

Conclusion

Understanding transformer symbols is the first step toward fluency in the language of electrical engineering. We have covered the anatomy of a symbol, from its windings and core to its polarity marks.

We also provided a glossary of common types and walked through a practical schematic example. With this knowledge, you can confidently read, design, and troubleshoot circuits.
