Delta & Wye Transformer Connections Explained

A delta wye transformer is a three-phase transformer with a delta-configured primary winding and a wye-configured secondary. It is the backbone of modern electrical distribution.

This guide covers the basic theory, real-world uses, and a step-by-step process for picking the right transformer for your needs.

Foundational Concepts

You need to understand delta and wye connections separately before combining them. Each one has its own rules for voltage and current. These rules decide which connection works best for a given job.

The Wye (Y) Connection

The wye connection, also called a star connection, joins one end of each of the three windings to a shared central neutral point. It looks like the letter “Y.”

Its voltage and current relationships are defined as: Line Voltage = √3 × Phase Voltage Line Current = Phase Current

The biggest advantage of this setup is that it creates a stable neutral point.

Key features of a wye or star connection include:

• Provides a stable neutral for system grounding, which improves safety.
• Allows for two voltage levels at once, such as 208V line-to-line and 120V line-to-neutral.
• Works well for powering a mix of three-phase and single-phase loads.

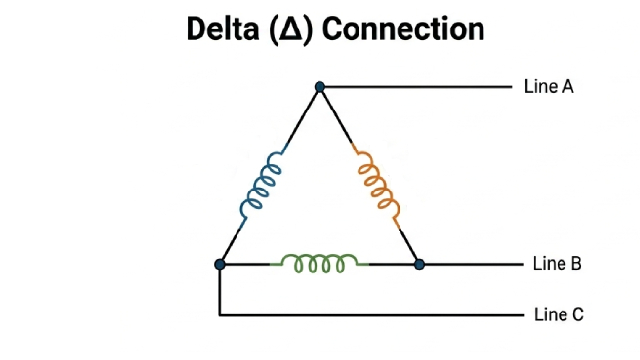

The Delta (Δ) Connection

In a delta connection, three windings are joined end-to-end in a closed loop that looks like a triangle. There is no central neutral point in this setup.

Its voltage and current relationships are: Line Voltage = Phase Voltage Line Current = √3 × Phase Current

The square root of 3, which is about 1.732, shows up in both connection types. It drives the voltage increase in wye systems and the current increase in delta systems.

Key features of the delta connection include:

• Has no neutral point by design.
• Handles higher phase current well, which makes it strong for motor loads.
• Can keep running at lower power in an “open delta” setup if one winding fails.

The Delta-Wye (Δ-Y) Transformer

The delta wye transformer is the most common setup used in power distribution. It brings together the best features of both winding types. The standard design has a delta-connected primary on the high-voltage side and a wye-connected secondary on the low-voltage side.

How It Works

High-voltage power enters the delta primary winding. The transformer steps the voltage down, and the wye secondary sends out a lower, more flexible voltage with a neutral point ready for grounding and single-phase loads.

Key Advantages

The delta wye setup is one of the most commonly used in distribution systems for several important reasons.

• Safe and Flexible Voltage Output: The wye secondary gives a stable neutral for grounding, which is a key safety feature. It also lets the transformer supply both three-phase loads, like 480V equipment, and single-phase loads, like 277V lighting, from one unit.
• Harmonic Filtering: The closed-loop delta primary traps harmful third-harmonic currents. This keeps them from flowing back into the utility grid and hurting power quality.
• Handles Unbalanced Loads Well: This setup manages uneven single-phase loads much better than other designs. The delta primary helps spread current evenly across the phases, which prevents overheating and instability.

At a Glance: Configurations

The delta-wye is the most common setup, but engineers work with four main three-phase transformer types. Each one fits specific jobs.

Choosing the Right Connection

Picking the right transformer means thinking through a few key questions. This checklist walks you through the most important decision points.

Decision-Making Checklist

1. Do you need to supply single-phase loads? If yes, you must use a wye secondary. It is the only standard setup that gives you a neutral point for line-to-neutral connections, like 120V outlets or 277V lighting.
2. Is the load likely to be unbalanced? For buildings with a heavy mix of single-phase loads, like offices or retail stores, the delta-wye setup is the best choice. It naturally balances current across the primary and prevents problems from uneven loads.
3. Are harmonics from non-linear loads a concern? Most modern buildings have non-linear loads like variable frequency drives, LED drivers, and computer power supplies. A delta winding is key for trapping and canceling out triplen harmonics to keep power quality high.
4. Is this a step-up or step-down application? For stepping voltage down from a utility, delta-wye is the industry standard. For stepping voltage up at a power source like a solar farm or generator, a wye-delta setup is often the better choice.
5. What is the existing system’s grounding scheme? Your new transformer must match the grounding and protection design of the systems around it. Coordinating with the existing system is a common topic among professionals, since a mismatch can create serious safety risks and system failures.

CNC ELECTRIC

S9-M Series Fully Sealed Oil-Immersed Transformer

Features a fully oil-filled, sealed corrugated tank that naturally adapts to oil expansion. Engineered for high efficiency and low loss to significantly save power consumption and operating costs.

• Sealed corrugated tank for optimal heat dissipation
• High mechanical strength & strong short-circuit resistance
• Low no-load/load loss for maximum energy savings
• Compact, reliable, and 100% maintenance-free

View Product Details

Advanced Topics

Two technical details of the delta wye transformer are especially important for system design: phase shift and harmonic filtering.

The 30-Degree Phase Shift

A delta-wye connection always creates a 30-degree shift between the primary and secondary line voltages. This is not a defect but a built-in feature defined by industry labels called vector groups, such as Dyn11.

This phase shift matters for two main reasons:

• Paralleling Transformers: You can only run two transformers in parallel if they share the exact same vector group. Mixing a Dyn1 with a Dyn11, for example, will cause large, damaging currents the moment you energize them together.
• System Integration: All connected equipment, including protection relays, power meters, and control systems, must be set up to account for this 30-degree shift to work correctly.

The standard phase shift is 30 degrees. The vector group label, such as Dyn1 or Dyn11, tells you whether the secondary voltage lags or leads the primary, as set by ANSI/IEEE standards for transformer connections.

How Delta Filters Harmonics

Non-linear loads like variable frequency drives draw current in uneven pulses instead of smooth waves. This creates triplen harmonics, which are the 3rd, 9th, 15th, and similar multiples, that flow back into the power system.

These harmonics can overheat neutral wires and make the system unstable. The delta winding solves this problem by giving these triplen harmonics a low-resistance loop to circulate in. They stay trapped inside the primary winding and cannot travel back upstream into the grid.

Conclusion: The Right Connection

The delta-wye transformer stands out because of its unique mix of benefits. It handles both single-phase and three-phase loads with ease, improves safety through a grounded neutral, and protects power quality by blocking harmful harmonics. Picking the right transformer connection is not just a technical detail. It is a core decision for building a safe, efficient, and dependable electrical system. For any engineer, understanding these fundamental connections is a key part of doing the job well.
